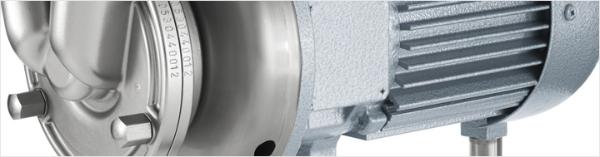

Centrifugal Pumps FZ
The universal solution for high suction performance.
Design
The self-priming Fristam FZ pumps operate in accordance with the side-channel principle. Impellers with radial blades, in conjunction with hydro-dynamically
optimised side-channels, transmit the pressure energy to the product. Very narrow packed sealing gaps ensure an outstanding suction performance.
Technical details
• 6 different sizes
• System pressures up to 15 bar
• Discharge pressures up to 6.5 bar
• Flow rates up to 64 m3/h
• Viscosities up to 5,000 mPa s
Download
Product details PDF

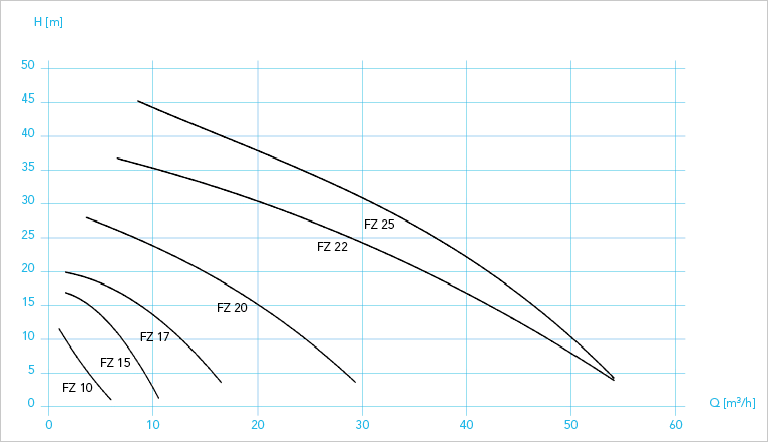

Selected figures for FZ model sizes
The universal solution for high suction performance.
Design
The self-priming Fristam FZ pumps operate in accordance with the side-channel principle. Impellers with radial blades, in conjunction with hydro-dynamically
optimised side-channels, transmit the pressure energy to the product. Very narrow packed sealing gaps ensure an outstanding suction performance.
Technical details
• 6 different sizes
• System pressures up to 15 bar
• Discharge pressures up to 6.5 bar
• Flow rates up to 64 m3/h
• Viscosities up to 5,000 mPa s
Download
Product details PDF
Selected figures for FZ model sizes
 | |  | |  | |  |
